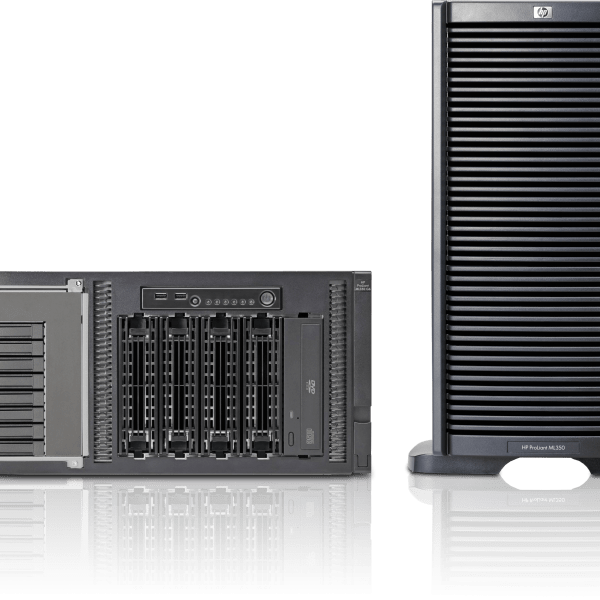

Name: HP ProLiant ML350 G6
SKU: hp-proliant-ml350-g6
Availability: InStock

Description

Feature	Description
Processor¹ (One of the following depending on model.)	Six-Core Processors Intel Xeon Processor X5675 (3.06 GHz, 12MB L3 Cache, 95 W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Intel Xeon Processor X5670 (2.93 GHz, 12MB L3 Cache, 95 W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Intel Xeon Processor X5660 (2.80 GHz, 12MB L3 Cache, 95 W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Intel Xeon Processor X5650 (2.66 GHz, 12MB L3 Cache, 95 W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Intel Xeon Processor E5649 (2.53 GHz, 12MB L3 Cache, 80 W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Intel Xeon Processor E5645 (2.40 GHz, 12MB L3 Cache, 80 W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Quad-Core Processors Intel Xeon Processor X5672 (3.20 GHz, 12MB L3 Cache, 95 W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Intel Xeon Processor E5640 (2.66 GHz, 12MB L3 Cache, 80 W, DDR3-1066, HT, Turbo (1/1/2/2) Intel Xeon Processor E5630 (2.53 GHz, 12MB L3 Cache, 80 W, DDR3-1066, HT, Turbo Intel Xeon Processor E5620 (2.40 GHz, 12MB L3 Cache, 80 W, DDR3-1066, HT, Turbo Intel Xeon Processor E5607 (2.26 GHz, 12MB L3 Cache, 80 W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Intel Xeon Processor E5606 (2.13 GHz/4-core/8MB/80 W,DDR3-1066, Turbo 1/1/2/2/3/3) Intel Xeon Processor E5603 (1.60 GHz, 12MB L3 Cache, 80 W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Intel Xeon processor X5570 (2.93 GHz, 8MB L3 cache, 95 W, DDR3-1333, HT, Turbo 2/2/3/3) Intel Xeon processor X5560 (2.80 GHz, 8MB L3 cache, 95 W, DDR3-1333, HT, Turbo 2/2/3/3) Intel Xeon processor X5550 (2.66 GHz, 8MB L3 cache, 95 W, DDR3-1333, HT, Turbo 2/2/3/3) Intel Xeon processor E5540 (2.53 GHz, 8MB L3 cache, 80 W, DDR3-1066, HT, Turbo 1/1/2/2) Intel Xeon processor E5530 (2.40 GHz, 8MB L3 cache, 80 W, DDR3-1066, HT, Turbo 1/1/2/2) Intel Xeon processor E5520 (2.26 GHz, 8MB L3 cache, 80 W, DDR3-1066, HT, Turbo 1/1/2/2) Intel Xeon Processor E5507 (2.26 GHz, 4MB L3 Cache, 80 W, DDR3-800) Intel Xeon processor E5506 (2.13 GHz, 4MB L3 cache, 80 W, DDR3-800) Intel Xeon processor E5504 (2.00 GHz, 4MB L3 cache, 80 W, DDR3-800) Intel Xeon Processor L5630 (2.13 GHz, 12MB L3 Cache, 40 W, DDR3-1066, HT, Turbo 1/1/2/2) Intel Xeon processor L5520 (2.26 GHz, 8MB L3 cache, 60 W, DDR3-1066, HT, Turbo 1/1/2/2) Quad-Core Intel Xeon Processor L5506 (2.13 GHz, 4MB cache, QPI 4.8 GT/s) Dual-Core Processors Intel Xeon Processor E5503 (2.00 GHz, 4MB L3 Cache, 80 W, DDR3-800) Intel Xeon processor E5502 (1.86 GHz, 4MB L3 cache, 80 W, DDR3-800)
Cache memory (One of the following depending on model.)	12MB (1 x 12MB) Level 3 cache NOTE: For 5600 series processors 8MB (1 x 8MB) Level 3 cache NOTE: For X5570/X5560/X5550/E5540/E5530/E5520/L5520 processors 4MB (1 x 4MB) Level 3 cache NOTE: For E5507/E5506/E5504/E5503/E5502/L5506 processors
Chipset	Intel 5520 Chipset Click here for more information regarding Intel chipsets .
Upgradeability	Upgradeable to 2 processors (4 or 8 cores)
Memory protection	Advanced ECC Mirroring mode Lock-step mode

Memory²

(One of the following depending on model.)

Type	DDR3 Registered (RDIMM) and Unbuffered (UDIMM)
Standard (Performance Models)	12GB (6 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
Standard (Base Models)	6GB (3 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
Standard (Entry Models)	4GB (2 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
Maximum (RDIMM)	192GB (12 x 16GB)
Maximum (RDIMM)	144GB (18 x 8GB) for Registered Memory configurations
Maximum (UDIMM)	24GB (12 x 2GB) for Unbuffered Memory configurations

Network controller

Embedded NC326i PCI Express Dual Port Gigabit Server adapter

Expansion slots³

Expansion Slots #	Technology	Bus Width ²	Connector Width	Bus Number¹	Form Factor
6	PCI Express Gen2	x4	x8	5	Standard Height/Length
5	PCI Express Gen2	x4	x8	8	Standard Height/Length
4	PCI Express Gen2	x8	x16	11	Standard Height/Length
3	PCI Express Gen2	x8	x8	14	Standard Height/Length
2	PCI Express Gen2	x4	x8	17	Standard Height/Length
1	PCI Express Gen2	x4	x8	20	Standard Height/Length

Storage controller

(One of the following depending on model.)

Entry model	Embedded HP Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)
Base models	Embedded HP Smart Array P410i/256MB Controller (RAID 0/1/1+0/5/5+0) Embedded HP Smart Array P410i/512 MB BBWC Controller (RAID 0/1/1+0/5/5+0)
Performance models	Embedded HP Smart Array P410i/1GB FBWC Controller
Available upgrades	256MB, 512MB with BBWC, Battery kit upgrade (for BBWC), and Smart Array Advanced Pack (SAAP) HP SC44Ge SAS Host Bus Adapter

Storage

Diskette drives	None included standard (not supported)
Optical drive	HP Half-Height SATA DVD-ROM Optical Drive
Hard drives	None included standard

Maximum internal storage

(One of the following depending on model.)

Hot Plug LFF SATA	8TB	8 x 1TB
Hot Plug LFF SAS	8TB	8 x 1TB
Hot Plug SFF SATA	4.0TB	16 x 250GB
Hot Plug SFF SAS	4.8TB	16 x 300GB

Interfaces

Serial	1
Pointing Device (Mouse)	1
Graphics	1
Keyboard	1
Network RJ-45	3 (1 dedicated for ProLiant Onboard Administrator)
USB 2.0 Ports	6 (2 front, 2 rear, 2 internal)

Graphics⁴

Integrated ATI RN50, 64MB video standard

16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024

Form Factor

Tower or Rack (5U)

System fans⁵

2 fans ship standard, 1 included in 2nd Processor kit and 1 fan for redundancy (optional)

Required cabling

Click here to refer to the HP ProLiant ML350 G6 cabling matrix for cabling information
.

Power supply

HP has a new Common Slot Power Supply bay for ProLiant power. This design provides commonality in power supplies across multiple platforms to save on the cost of spares and allows HP to offer multiple power solutions to fit the customers’ needs. HP’s new Common Slot power supplies are designed for highest efficiency to provide power efficiency without degrading performance of the ProLiant. Power Supplies will have efficiency ratings up to 92%. There are three Right Size power options available, depending on the configuration of the r server. To make sure to select the correct power supply to meet the configuration, we suggest that to use the HP Power Advisor to decide the “Right-Size” for the configuration.

Security – Trusted Platform Module

The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows BitLocker Drive Encryption (BitLocker) is a data protection feature available in Windows Server 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline.

Security

Power-on password
Setup password
Serial interface control
Disk configuration lock
Power switch security

System management

HP Systems Insight Manager
SmartStart
Redundant ROM

System Firmware Update
ROMPaq
ProLiant RBSU (ROM-Based Setup Utility)
Automatic Server Recovery-2 (ASR-2)
Dynamic Sector Repairing (with Smart Array Controller)
Drive Parameter Tracking (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory, and SAS hard drives)

Industry standard compliance

ACPI V2.0 Compliant
PCI-Express Gen2
PXE Support
WOL Support
PCI-X 1.0a Compliant
Novell certified
Microsoft Logo certifications
USB 2.0
SMBIOS 2.6.1

NOTE: 1: HT indicates that the processor model supports Intel® Hyper-Threading Technology.

Turbo indicates the maximum potential frequency increment when using Intel Turbo Boost Technology, with 4, 3, 2, and 1 cores active.

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

For the Intel 5600 and 5500 Series, the letter preceding the model number indicates the performance/wattage of the processor. “X” denotes High Performance/Wattage; “E” denotes Enterprise Performance/Wattage (Mainstream); and “L” denotes Lower Wattage.

Customers transitioning from 5500 series processors to 5600 series processors must include a third fan along with the two fans present on the server.

2: Depending on the memory configuration and processor model, the memory speed may run at 1333 MHz, 1066 MHz, or 800 MHz.
Click here to see the online memory configuration tool
.

3: Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number.

4: Maximum resolution available via ProLiant Onboard Administrator remote console is 1280 x 1024.

5: Does not include power supply or processor heat sink fans. Processor heat sink fans packed in processor kit.

Processors:	Intel® Xeon® Processor X3450 (8M Cache, 2.26 GHz, 5.86 GT/s Intel® QPI) Cores 4, Threads 8
Hard Drives:	Hard Drive 146 GB x 4 hard drives SAS, 2.5, 10k
Memory:	8 GB DDR3
Power Supply	Dual
Optical	DVD Rom
Raid Card	D4102

Processors:	Intel® Xeon® Processor E5620 (12M Cache, 2.40 GHz, 5.86 GT/s Intel® QPI) Cores 4, Threads 8
Hard Drives:	Hard Drive 500 GB x 4 hard drives SAS, 2.5, 10k
Memory:	8 GB DDR3
Power Supply	Dual
Optical	DVD Rom
Raid Card	D4102
